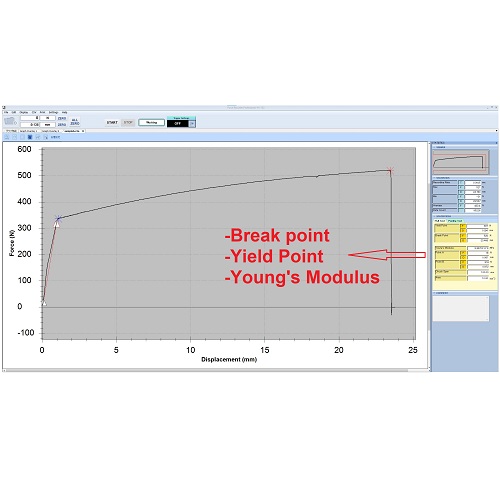

Automatic Calculation Of Break point, Yield Point and Young's Modulus Software

This customized software additionally equips the automatic calculation of break point, yield point and young's modulus function. It is useful for tension test of hard samples such as metal.

Test Stand with Separated Operation Panel

IMADA offers custom-made products and services. This test stand has a separated operation panel, enabling remote control. It is ideal for testing in dangerous environment such as high temperature place.

ISO 17480: 2015 Peel Tester for Gable-Top Package

Enables peel strength test of gable-topped package complying with the corresponding part of ISO 17480: 2015.

Tension Calibration Plate

IMADA offers calibration plate to calibrate the tension load of IMADA force gauges. It can also be used with the compression jig for calibration of compression load. This calibration plate with low error is designed to put on the weight and be also used as a weight. For instance, the error of 5N plate is ±0.00074N. It can be utilized for daily check and in-house calibrations.

Peel Test Fixture for Solar Cell Ribbon

This is peel test fixture for solar cell ribbon. The fixed or adjustable peeling angle types are selectable to meet your testing requirements.

Large Size of 90 Degree Peel Tester

Enables you to test A3 size of samples or samples bonded on three-dimensional objects.

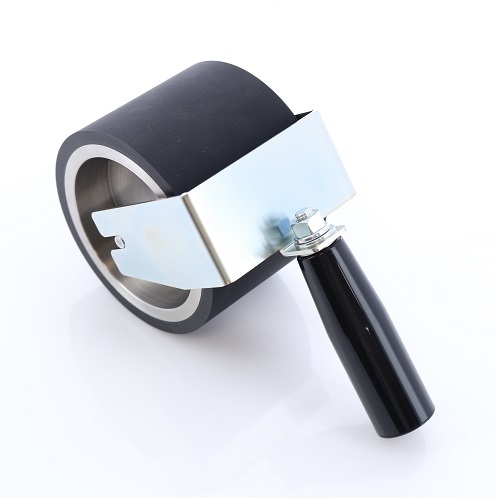

Motorized Rubber Roller for Peel Test

The motorized rubber roller for peel test allows bonding of a sample at a certain pressure. The roller moves at a certain speed automatically to enhance testing efficiency and accuracy.

Test Stand for Integration into Equipment (Separated Column)

IMADA offers custom-made products and services. This test stand has the separated column, which enables you to put it in a narrow space or a desired position.

Tester With Thermostatic Chamber

This customized force tester with thermostatic chamber enables tension and compression tests under temperature from -40℃ to 150℃. It is useful for test at a desired constant temperature and material's characteristics evaluation in different temperature environments.

Peel Tester with Multiple Force Gauges

This peel tester enables 4 pcs of force gauges to perform peel testing simultaneously. By connecting the custom-made software, the test result of each force gauge can be output and graphed at the same time. These functions enhance testing efficiency greatly.

IPTS-5N

Peel Strength Tester has capacity of 5N and measures the peel strength of cover tapes of embossed carrier tapes that contain semiconductors and electronic components in accordance with JIS and other industrial standards. Next Series with firmware Ver. 5 or later offers improved measurement stability due to low noise, expandability with the ability to add functions on a dedicated website ((MADA-Connected.com), and the convenience of downloading various software and instruction manuals.

IPTS-20N/50N

This peeling tester is ideal for peeling film, adhesive tape or thick samples at an angle close to 180 degrees including measuring its peeling strength and adhesive strength. The clamp jig enables one-touch sample fixation, making it suitable for testing thick samples such as copper foil peeling on printed circuit boards. This high-speed peeling tester (maximum peeling speed: 1500mm/min) is also suitable for researching peeling characteristics at variable speeds. Next Series with firmware version 5 or later offers improved measurement stability thanks to low noise, expandability through the addition of functions (firmware download) on the dedicated website (IMADA-Connected.com), and the convenience of downloading various software and instruction manuals. It is possible to measure up to 20N or 50N.

FRTS series

IMADA rheometer is desktop and portable, making it easier to handle on site and less expensive to install than larger test machines. Despite its small size, it is capable of acquiring 1000 data per second and has a high accuracy of ±0.2% F.S., making it possible to perform precise food texture test. The recommended measurement method for each food is pre-installed, and the measurement method can be arranged, so you can instantly start texture test immediately after purchase without any difficult settings. Software for graphing the measured values is included, and by programming the test conditions, various parameters such as adhesion and stickiness can be obtained, making texture analysis easy.

FCA-DSV-50N

This compact unit manually measures food hardness. The lever type is easy to operate and the stainless-steel construction is easy to clean. This is also recommended when there are only a few types of food samples or when it is sufficient to obtain the maximum, minimum, and average values.

MX3-500N

Desk-top size motorized test stand for use in combination with IMADA force gauge. Achieves a highly reproducible force measuring process with uniform test speed and force direction. In addition to digital speed setting and counter/timer functions, it is also possible to control operation by force value. (Dedicated cable connections required with a compatible force gauge). Downloadable software included for operation setting support efficiency.

MX2 series

Standard motorized test stand has capacity of 5000N and is versatile and desktop, providing both the ease of use and functionality. Such functions and performance that enhance measurement repeatability, as digital speed setting and mechanical strength, are standard-equipped. A timer/counter function allows for durability and repetitive test. Strong deflection rigidity enables precise measurement.

EMX series

Advanced motorized test stand has capacity of 1000N and is equipped with the highest functions. Wide range of measuring speed (0.5 to 600mm/min) and travel setting are available for more diverse and various measurement. High rigidity enables precise measurement. Equipped with a contact point detection function and a function to memorize up to 5 measurement conditions, which greatly improves measurement efficiency.

MH2 series

Horizontal Motorized Test Stand MH2 series is standard type with 500N to 2500N capacity. It is functional yet user-friendly model with easy operation. The horizontal design allows applying force horizontally. Its rugged design provides solutions for complex testing.

SVL-1000N

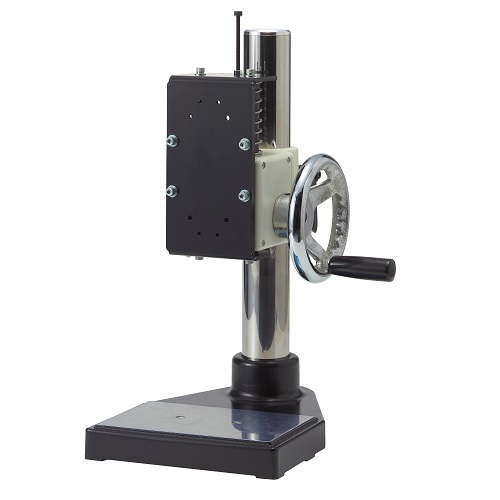

Manual test stand SVL series is simple type offering excellent cost performance with 1000N capacity. Its lever operation improves measuring efficiency.

SVH-1000N

Manual test stand SVH series is simple type offering excellent cost performance with 1000N capacity. Its handle operation offers stable measurement.

HV series

Manual Test Stand HV series is standard type with 500N to 3000N capacity. It is ideal for measurement of large or extensible samples due to the long stroke.

FCA-50N

FCA series is small manual test stand with 50N capacity. It offers high repeatability at budget price by providing a fixed push-in amount.

MS series

Manual test stand MS series is portable type with 50N capacity. Its knob operation allows fine adjustment of a force gauge’s position. It can be used for various measurement purposes and environments as well as measuring in different angles.

FSA series

IMADA FSA series is force-displacement measurement unit. This unit allows accurate force-displacement measurement and analysis with force-displacement graphing software. It is ideal for force-displacement measurements such as material characteristic evaluation and tactile testing.

ACT-1000N

ACT-1000N is an automatic crimp tester with 1000N capacity. The device can easily perform strength testing of crimp terminals just by pressing the bottun so that it reduces the time and effort required for wire harness testing.

LH-500N

This is a dedicated stand to measure the crimp strength of crimped terminals and is used in combination with a force gauge. The lever type provides high measurement efficiency and lower cost compared to auto harness testers. Measurable up to 500N.

eHT series

Torque load cell for eZ-Connect Series measures the force of twisting (turning) to the left or right. The optional jig (sold separately) is attached to the tip of the sensor to match the object to be measured. It has capacity of 10Nm. A dedicated indicator i.e., eZT or eFA plus, needs to be used.

DPU series

Standard-type load cell has capacity of 500N, and is rectangular shaped which can be easily integrated into an external equipment. A jig is attached to the measuring shaft (threaded part).

DPUH series

High capcity load cell with capacity of 1000N to 20kN. It can be used for both compression and tension testing. It is cuboid shaped which can be easily integrated into an external equipment with its equipped female threads.

SW series

This complies with IP67 (Ingress Protection Rating) waterproof and dustproof protection, with capacity of 500N. Both ends of the load cell are threaded so that it can be fixed to equipment or connected to an eyebolt.

LU series

Compact load cell is equipped with a sensor diameter of approximately Φ28 mm, and has capacity of 2000N. They are for compression and tension. The internal treads are to fix them to equipment or connect them to an eyebolt.

LC series

Coin-shaped load cell for compression that can be inserted into narrow gaps. Compression force is applied to the protruding part at the tip for measurement. It has capacity of 20kN.

PK2-1500N

Depression force (stepping force) load cell measures the force to step on the foot brake of a car. It is easy to measure the brake force by hooking and fixing the load cell to the foot brake and stepping on the brake with the load cell. It is IP65 (Ingress Protection Rating 65) compliant and easy to handle on site.

DM-2000N

Load cell for automatic and revolving door is specially designed to measure the closing force of automatic doors and revolving doors. The blue sensor part contacts the closing door. It can be applied in partial compliance with JIS and other industrial standards.

ZTS series

Standard type digital force gauge has capacity of 1000N and is easy-to-operate and functional, with 2000Hz high-speed sampling for accurate peak measurement and smooth curve when graphing data. The included software enables data management via PC, and graphing software for detailed data analysis. Several external output methods are available for connection to various devices. Next Series digital force gauges with firmware Ver.5 or later has improved measurement stability with less noise, and optional functions and software can be downloaded from the dedicated website (IMADA Connected) functions require connection to separately-sold products.

ZTA series

High functionality type digital force gauge has capacity of 1000N and is equipped with additional functions to ZTS series, such as input/output of displacement and data saving to USB. Next series digital force gauges with firmware Ver.5 or later offers improved measurement stability with less noise, and optional functions and software can be downloaded from the dedicated website (IMADA Connected). Some functions require connection to separately-sold products.

DST series

Digital force gauge for handheld has capacity of 1000N with basic functions, and are most economical, easy-to-operate and compact size. With a shape that fits in your hand, a light weight of 460g, and a battery that allows up to 30 hours of continuous use, simple type digital force gauge is ideal for handheld measurement. Despite its simplicity, simple type digital force gauges are equipped with convenient functions for measurement and management, such as a pass/fail judgement, a warning alarm to prevent malfunctions due to overload, and notification of calibration time. Software for importing data to a PC is also included. Some functions require connection to separately-sold products.

DSV series

Digital force gauge for handheld (advanced model) is designed to improve repeatability even when hand-held. Additional functions are topped to DST. When handheld type is used, the measurement angle tends to be inconsistent, which limits the repeatability of measurement. The added function reduces variation in measurement angles and thus improves repeatability. Other useful features include the ability to continuously acquire peak values without button operation and also the internal memory. Some functions require connection to separately-sold products.

FA Plus2/eFA Plus2

Desktop force amplifier is ideal for integration into facility, and can be used with variety of load cells. There are various inputs/outputs, and they can be used as part of factory automation equipment. 2000 Hz high-speed sampling ensures reproducible measurements for both peak measurement and graphing. Some functions require connection to separately-sold products.

FB/FS series

Simple type mechanical force gauge is equipped with a peak switch, which can be turned on to stop the needle at the peak value. They support both compression and tension test, with capacity of 500N.

PS/PSS series

Standard Type Mechanical force gauges has capacity of 500N, and are with high accuracy of ±0.1%. They support compression and tension, and are equipped with a stop mechanism so that peak values can be measured.

PSM series

Precision type mechanical force gauge has capacity of 500N, and is with high accuracy of ±0.1% and fine memory equalization. Ideal for precise measurements. They support compression and tension, and are also equipped with a stop mechanism that stops the needle at the peak value.

PSH series

High-capacity type mechanical force gauge has capacity of 3000N. They support compression and tension, and equipped with a stop needle mechanism that stops the needle at the peak value.

QSMA-400

A measurement amplifier can be used with any of four assorted choices: load cells, strain gauges, and voltage sensors. \nLinear scale (angle meter) and contact signals are also possible for input. By using the downloadable software, all measurements can be displayed in real-time. Continuous data can be recorded and graphed, allowing correlations between measurements to be analyzed.

ACMTS series

ACMTS series is the dedicated motorized torque stand for the screw cap tester with 10N-m(1000N-cm) capacity. It enables torque measurement with higher repeatability thanks to its constant rotation speed. The operation can be controlled by torque values and angle. It also enables durability tests using repetition function.

MTS series

MTS series is the dedicated motorized torque stand for the screw cap tester with 10N-m(1000N-cm) capacity. It enables torque measurement with higher reproductivity thanks to its constanct rotation speed. The operation can be controlled by torque values and rotation periods. It also enables durability tests using repetition function.

TAA-ACMTS-TB series

TAA-ACMTS-TB series is torque-angle measurement unit with 10N-m(1000N-cm) capacity. It is measurement unit for easy and accurate analysis of torque (rotating/twisting force) vs. angle. It is ideal for measurements of opening/closing torque of screw caps and torsional strength for circuit boards.

TAA-HTG series

TAA-HTG series is torque-angle measurement unit with 10N-m(1000N-cm) capacity. Its portable design is easy for transportation. It is ideal for torque vs. angle measurement of rotary switch and key, etc.

SDT series

This is a manual rotation assistive jig exclusively for the DTXS/DTXA torque gauges. The jig makes it easy to rotate or continue to rotate more than 360 degrees by turning the knob.

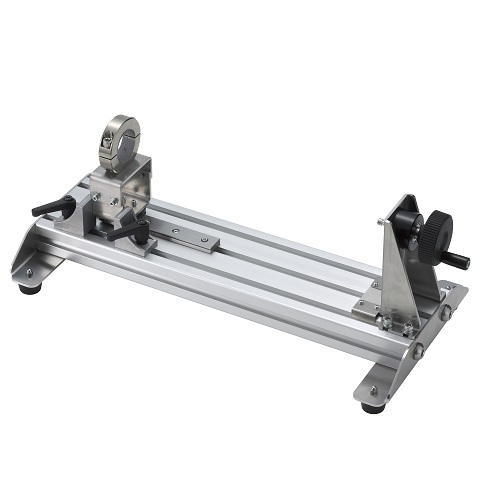

RSH series

RSH series is rotation support jig with 5N-m (500N-cm) capacity for torque gauge HTGS/A series. It is designed to help measure torque in the horizontal direction and enables you to rotate the samples more than 360 degree continuously.

SHT-5N

A simple stand to secure the HTGS, HTGA, or eHT torque sensor for stable torque measurement.

DTXS series

Standard type screw cap torque tester combines ease of use and functionality with the capacity of 50 N-cm to 1000 N-cm (10 N-m), and can measure opening and closing torque of container lids such as PET bottles or jars. High-speed sampling at 2000 Hz ensures high repeatability in both peak measurement and graphing. Next Series with firmware version 5 or later offers improved measurement stability due to low noise, and expandability and convenience through additional functions (firmware download) and various software and instruction manuals available from the dedicated website (IMADA Connected).

DTXA series

High-function screw cap torque tester has capacity of 50N-cm to 1000N-cm (10N-m). Capable of measuring opening and closing torque of container lids such as PET bottles and jars. In addition to the high measurement repeatability by high-speed sampling and various data output methods of the standard type (DTXS series), it features angle input/output and USB memory connection. Next Series with firmware Ver. 5 or later offers improved measurement stability due to low noise, and expandability and convenience through additional functions (firmware download) and various software and instruction manual from the dedicated website (IMADA Connected).

HTGS series

Handheld digital torque gauge HTGS series is functional yet user-friendly model with 50N-cm to 1000N-cm(10N-m) capacity. It is ideal for torque measurement of tightening/loosening a screw/bottle or turning a rotary switch etc. Its high sampling rate 2000Hz ensures high reproducibility of peak value testing and continuous data graphing. Moreover, its various data output options improve testing versatility in terms of data management on a PC using supplied software, and combination with external devices. Next Series (Firmware Ver.5 or later) evolved for greater performances and extended functions, including enhancement of testing stability by further noise reduction, and firmware updates and various software downloads from IMADA download site (IMADA Connected).

HTGA series

Handheld digital torque gauge HTGA series is high functionality model with 50N-cm to 1000N-cm(10N-m) capacity. HTGA series offers all HTGS functions including high sampling rate for high reproducibility and various data output function. Moreover, it featured with additional functions including angle I/O and direct connection to USB flash drive, which enables direct data storing without PC. Next Series (Firmware Ver.5 or later) evolved for greater performances and extended functions, including enhancement of testing stability by further noise reduction, and firmware updates and various software downloads from IMADA download site.

I-8/I-80

I-8/I-80 is torque tool tester with 80cN-m（800mN-m) to 800cN-m（8.0N-m) capacity. It is ideal for the daily torque maintenance of motor screw drivers and torque drivers with simple operation.

Friction Testing Module

The Friction Testing Module is a plug-in for Force Recorder Next Series that includes automatic calculation of the coefficient of friction and presets of test conditions in accordance with various related standards. By pre-setting the weight of the weight and the selection data, the static and average kinetic coefficients of friction are automatically calculated and displayed based on the measurement results. Conversion and judgment results of COF can be output to a dedicated report template or CSV etc. It also displays the result of conformity judgment to the selected standard. *Download Card Basic is required.

Peel Testing Module 1

The Peel Testing Module 1 is a plug-in for Force Recorder Next Series that includes automatic calculation of a peel force conversion function and test condition presets compliant with various related standards. By setting sample width, conversion unit, and selection data in advance, the measurement results are automatically converted and displayed in the set peel force unit (e.g., N/10mm). It also displays the result of conformity judgment to the selected standard. *Download Card Advanced is required.

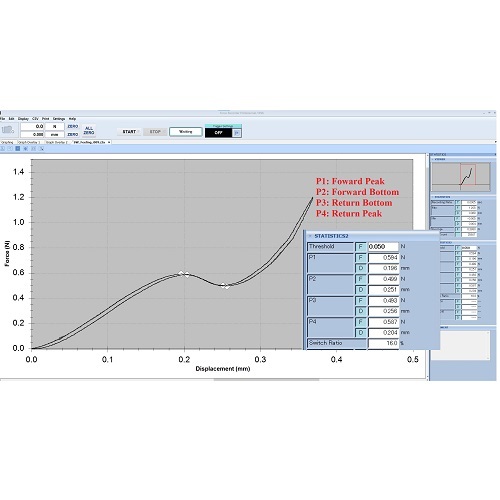

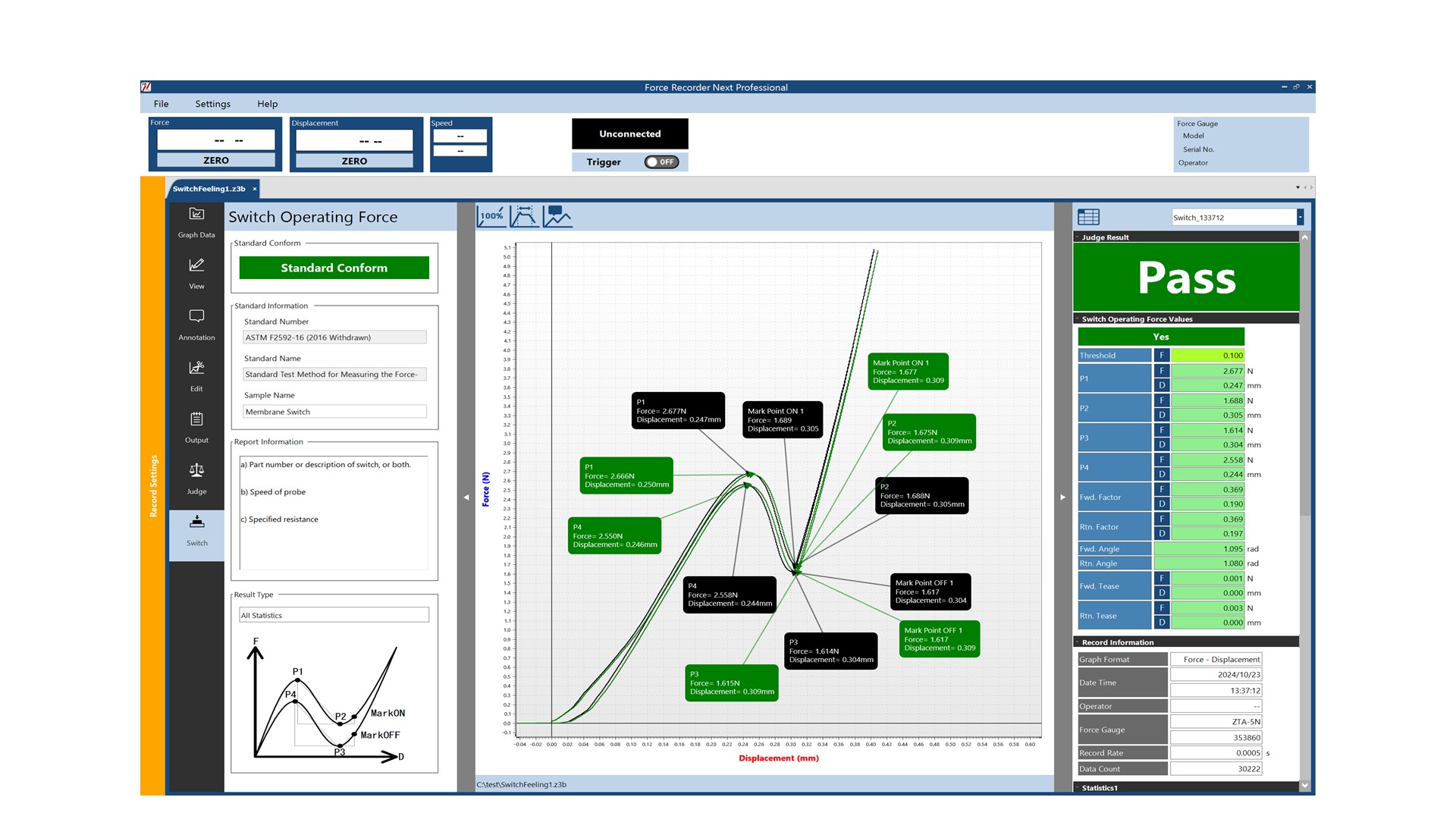

Switch Operating Force Testing Module

The Switch Operating Force Measurement Module is a plug-in for the Force Recorder Next Series includes a switch feeling calculation function and test condition presets compliant with related standards. It automatically calculates and displays each parameter of switch characteristics, such as click rate etc, based on the switch operating force and releasing force. It also displays the results of conformance judgment to the selected standard. *Download Card Light is required.

Pressure/Stretchability Measurement Module

The Pressure/Stretchability Measurement Module is a plug-in for Force Recorder Next Series that enables conversion from force to pressure and from displacement to stretchability and display the results. When perform compression/tension test after setting a sample cross-sectional area and contact area of attachment to sample, the measurement result (force value) will be converted and displayed as the force value per unit area (=pressure). Also, when perform compression/tension test after setting the initial length/height of the sample, the displacement amount willbe converted and displayed as the stretchability/stretchability rate. The Y-axis (pressure ⇔ load) and X-axis (elongation ⇔ displacement) of the graph can also be switched. Pressure/Stretchability conversion results can be output to a dedicated report template, CSV, etc.\nPreset conditions can be registered prior to the start of measurement, facilitating smooth switching of conditions to suit the sample and improving efficiency. *Download Card Basic is required.

Spring Rate Measurement Module

The Spring Rate Measurement Module is a dedicated plug-in for the Force Recorder Next Professional. This plug-in allows the software to calculate the "spring rate", which is the force required to pull or compress a spring, to display the measurement results, and to output them to a dedicated report template, CSV, etc. It supports three types of spring rate measurements: compression springs, tension springs, and disc springs. *Download Card Basic is required.

Deflection Correction Function

The Deflection Correction Function is a dedicated plug-in for Force Recorder Next Professional that can be used in combination with other plug-ins. With this function, the deflection amount occurred by applying a load to a force gauge, a load cell, or a test stand is corrected by the software. The more accurate displacement values are reflected in the measurement results and graphs. *Download Card Basic is required.

Bending Stress Measurement Module

The Bending Stress Measurement Module is a plug-in for the Force Recorder Next Series. This function automatically calculates and displays ”Bending Stress" during bending tests for material strength design, performance evaluation, durability verification etc. Measurement data including bending stress can be output in report format and CSV format. Supported sample shapes are rectangular/square bars and round bars. Supported test methods are Three-point bending, Four-point bending, and Cantilever beam. *Download Card Basic is required.

Excel Data Writing Function

Excel Data Writing Function is a plug-in for the Force Recorder Next Series, and can be used alongside other plugins. This function automatically writes measurement data, such as statistical values, into any Excel file (extension [.xlsx] and [.xlsm]). In addition to writing to user-defined formats, the plug-in includes templates for inspection reports, allowing efficient report creation tailored to specific needs. It also eliminates the need for manual data entry and helps reduce transcription errors. *Download Card Basic is required.

Force Recorder Next Standard

Force Recorder Next Standard is the graphing software that precisely records the force-time and torque-time transitions in force measurement through high-speed communication at a maximum of 2000 Hz. The easy-to-use interface and various preset functions are useful to increase the efficiency of force measurement and the analysis of its results. Additional functions can be added from the user support site, allowing the software to be used according to individual needs. *To use the software, user & product registration on IMADA Connected is required. Only Next Series products can be registered.

Force Recorder Next Professional

Force Recorder Next Professional is the graphing software that precisely records the force-time (displacement) and torque-time (angle) transitions in force measurement through high-speed communication at a maximum of 2000 Hz. The easy-to-use interface and various preset functions are useful to increase the efficiency of force measurement and the analysis of its results. Additional functions can be added from the user support site, allowing the software to be used according to individual needs. *To use the software, user & product registration on IMADA Connected is required. Only Next Series products can be registered.

PRN-SE series

PRN-SE series is the package of RS232C printer and a dedicated cable. The cable is selectable according to the measuring devices.

BL2-58 series

BL2-58 series is a RS232C printer to print the measurement values by connecting with measurement devices. It can print the measurement results without PC, so the data can be printed even in too small places to bring PC. It is useful when you want to print the results immediately after measurement such as for pasting the measurement result to the sample.

WL01 series

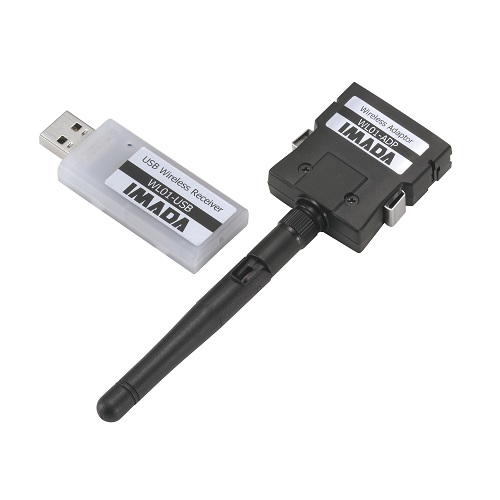

IMADA wireless data transmit system WL01 series is useful for data output of measurement instruments. It is ideal for receiving data from a remote location.

DMK series

DMK series is built-in linear scale for ZTA series digital force gauges. It enables the force-displacement testing by integrating into facilities.

AMK series

AMK series is angle meter kit for torque-angle measurement by connecting with handheld digital torque gauge HTGA series.

CTB-A

CTB-A is terminal block cable used to connect ZT, eZT, FA Plus2 series with external equipment.

CB-908

CB-908 is open end cable used to connect ZTS/ZTA series force gauges with unique equipment.

CB-808

CB-808 is cable used to measure external contact point for ZTS/ZTA/eZT digital force gauges.

CB-718

CB-718 is a cable used to connect a motorized test stand of MX2-FA/MH2-FA/EMX-FA series with firmware earlier version than 2.0 with a digital force gauge or an amplifier with displacement output function. It enables force-displacement measurement and activate functions of the test stand.

CB-728

CB-728 is a cable used to connect a motorized test stand, EMX-FA series with firmware earlier version than 2.0, with a digital force gauge or an amplifier with displacement output function. It enables force-displacement measurement and activate functions of the test stand. It is also used to connect a motorized torque test stand, MTS-10N-RA series, with a screw cap torque tester DTXA series.

CB-528

CB-528 is a cable used to connect a motorized test stand, MX2/EMX series, with a digital force gauge or an amplifire to activate functions of the test stand. It is also used to connect a motorized torque stand, MTS series, with a screw cap torque tester, DTXS/DTXA series.

CB-706

CB-706 is external signals I/O cable used to connect MX2-CN or EMX series test stand with external equipment to activate external control of the test stands.

CB-716

Cable CB-716 connects an external device to the motorized test stand MX3 series (-CN option), allowing signal outputs and inputs.

CB-208

CB-208 is RS232C Cable used to connect ZTS/ZTA series force gauges with PC, enabling data recording and operation from PC.

CB-203

CB-203 is RS232C Cable used to connect DST/DSV series force gauges with PC, enabling data recording and operation from PC.

VWF-10N-J

VWF-10N-J is a friction jig for MH2-500N to conduct reciprocating friction tests with various samples. You can place a weight on the plate to generate vertical force. *Weight is not included.

A-1/S-1/SR-1

Small hook A-1 (100N capacity), S-1 (500N capacity), SR-1 (1000N capacity) are accessory attachments. They are designed to hook your sample to perform tension testing.

P90-200N

P90-200N is 90 degree peel test fixture with 200N capacity. It is ideal for 90 degree peel test of adhesives such as tapes, glue, stickers etc. It enables testing complying with the corresponding part of IEC, ISO, ASTM, JIS, etc. (only for P90-200N)

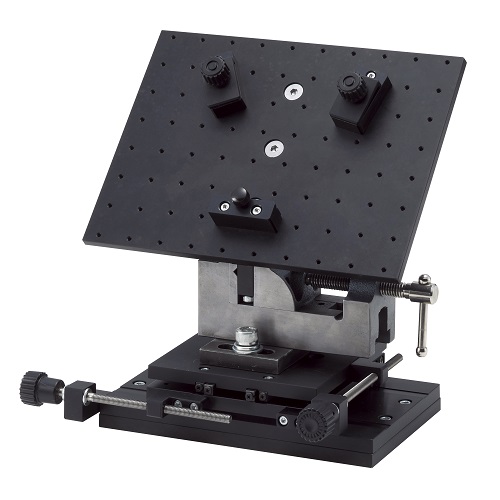

SJS-100N-L/S

SJS-100N-L/S is alignment stage with 100N capacity for solder joint strength test of QFP lead (lead free solder) or IC chips. It allows easy and fine position adjustment of tiny parts. The stage angle is switchable to 45 or 90 degrees.

GC series

GC series is flat chuck with 5000N capacity. It is ideal for a variety of tension testing of thin to thick samples due to its wide opening.

MED-SCT-500N

MED-SCT-500N is attachment for compression testing of syringe with 500N capacity. It is designed for compression testing of syringe. It enables testing complying with the corresponding part of ISO standard.

PR-500N/2500N

PR-500N/2500N is press test fixture with 2500N capacity. It is ideal for durability test of retort pouch or heat sealing packaging. It enables testing complying with the corresponding part of JIS standard.

CCJ series

CCJ series is cap clamping jig with 100N capacity. Its 4 pins grip round-shaped samples tightly. It is ideal for insertion / extraction test of round samples including caps of cosmetic package, connectors, and similar.

FR-YN-29

Yogurt cutter FR-YN-29 is attachment specialized for food texture analyzer FRTS series with 50N capacity. It is ideal for elasticity or stiffness test of semi-solid samples such as yogurt.

GT-30/2000N

GT-30/2000N is vise grip with 2000N capacity. Its wide fixing hole is easy to adjust the position of the vise for sample alignment. It is mountable to a vertical test stand for fixing samples.
