Standard Type Screw Cap Torque Testers

DTXS series

  1. Force Measurement IMADA
  2. PRODUCTS
  3. Screw Cap Torque Testers
  4. DTXS series

Description Add to favorites

DTXS/A-10N DTXS/A-10N

DTXS/A-10N-ST DTXS/A-10N-ST

DTXS/A-10N

DTXS/A-10N-ST

Desktop

Next Series

Standard type screw cap torque tester combines ease of use and functionality with the capacity of 50 N-cm to 1000 N-cm (10 N-m), and can measure opening and closing torque of container lids such as PET bottles or jars. High-speed sampling at 2000 Hz ensures high repeatability in both peak measurement and graphing. Next Series with firmware version 5 or later offers improved measurement stability due to low noise, and expandability and convenience through additional functions (firmware download) and various software and instruction manuals available from the dedicated website (IMADA-connected.com).

Feature

  • High sampling rate (2000Hz) for accurate results, capturing small changes and accurate peak values by following rapid changes of torque
  • Ideal for measuring opening/closing torque of various samples such as bottles and bins
  • Reduces risk of misreading values with easy-to-read high luminance organic EL display. Allows customers to customize the contents for the three sections of the display screen
  • Handles a wide range of samples with various optional tables and attachments
  • Next Series (Firmware Ver.5 or later) equips extended functions such as additional functions and software downloads from IMADA download site

Relevant Industrial Standards

ISO 17480 [ 2015 ] [Packaging - Accessible design - Ease of opening] (corresponding part only)

JIS S0021-2 [ 2018 ] [Packaging - Accessible design - Ease of opening] (corresponding part only)

User Guide Videos

Setting

Set Multi Display/Force Bar Graph

Setting

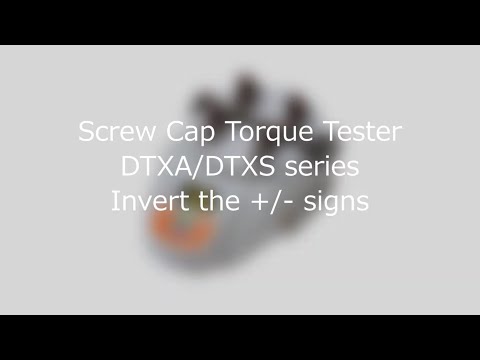

Invert The +/- Signs

Setting

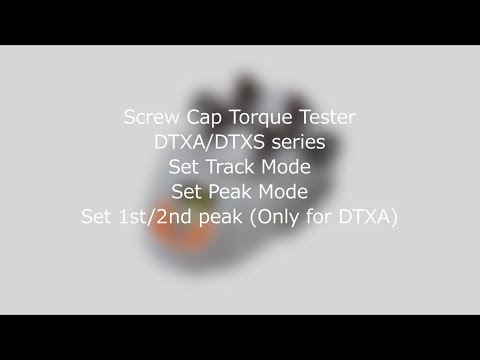

Set Modes

Setting

Set High Low Setpoints

Setting

Auto Shut Off Screen Saver

Setting

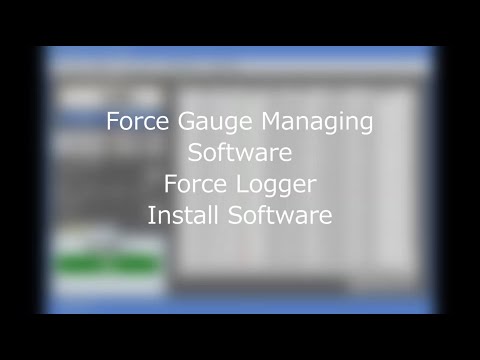

Install Software Force Logger

Setting

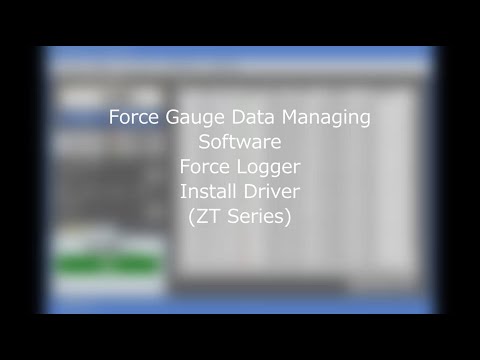

Install Force Logger Driver (ZT Series)

Setting

Use Force Logger in Wired/Wireless Mode

Setting

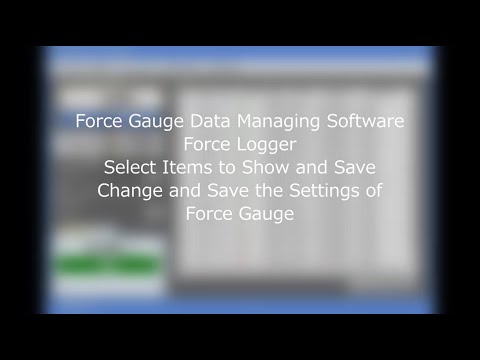

Select Items to Show and Save, Change and Save the Settings of Force Gauge in Force Logger

Mounting

Fix Attachments

Measurement

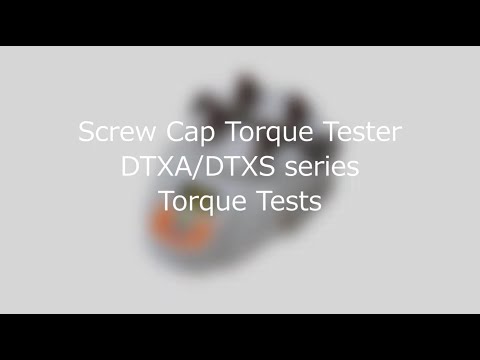

Torque Tests

Data record

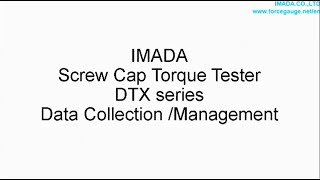

Record/Send Data

Maintenance

Battery Replacement
