High Functionality Type Built-in Torque Gauges

HTGA-TFX series

HTGA-TFX series

Description Relevant Information and Materials Relevant Products User Guide Videos
CONTACT
  1. Force Measurement IMADA
  2. PRODUCTS
  3. Built-in Torque Gauges
  4. HTGA-TFX series

Description Add to favorites

HTGA-TFX-5N HTGA-TFX-5N

Built in

Next Series

Angle Input/Output

Multi Function

Built-in digital torque gauge HTGA-TFX series is high functionality model with 500N-cm(5N-m) to 1000N-cm(10N-m) capacity. It is designed to integrate the sensor into torque testers or torque control systems in production line for torque measurement. HTGA-TFX series offers all HTGS-TFX functions including high sampling rate for high reproducibility and various data output function. Moreover, it featured with additional functions including angle I/O and direct connection to USB flash drive, which enables direct data storing without PC. Next Series (Firmware Ver.5 or later) evolved for greater performances and extended functions, including enhancement of testing stability by further noise reduction, and firmware updates and various software downloads from IMADA download site.

Feature

  • High sampling rate (2000Hz) for accurate results, capturing small changes and accurate peak values by following rapid changes of torque
  • Reduces risk of misreading values with easy-to-read high luminance organic EL display. Allows customers to customize the contents for the three sections of the display screen
  • Ideal for integration to equipment by fixing the sensor with its equipped holes on both sides
  • Suits for measurements in limited space due to the small sensor
  • Equips additional functions such as angle I/O (linear scale required), direct connection to USB flash drive, and 1st and 2nd peak value detection

User Guide Videos

Setting

Set Multi Display/Force Bar Graph

Setting

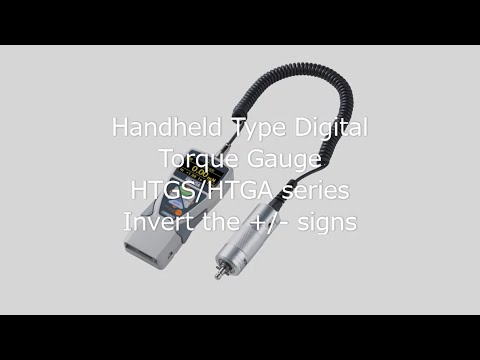

Invert The +/- Signs

Setting

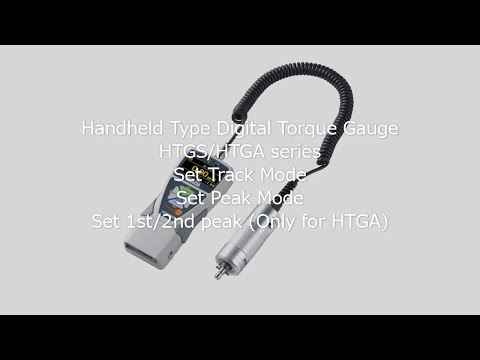

Set Modes

Setting

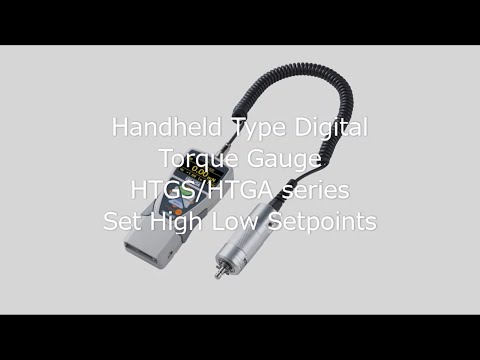

Set High Low Setpoints

Setting

Install Software Force Logger

Setting

Install Force Logger Driver (ZT Series)

Setting

Use Force Logger in Wired/Wireless Mode

Setting

Select Items to Show and Save, Change and Save the Settings of Force Gauge in Force Logger

Mounting

Fix Attachments

Measurement

Torque Tests

Measurement

Test/Output Angle

Data Record

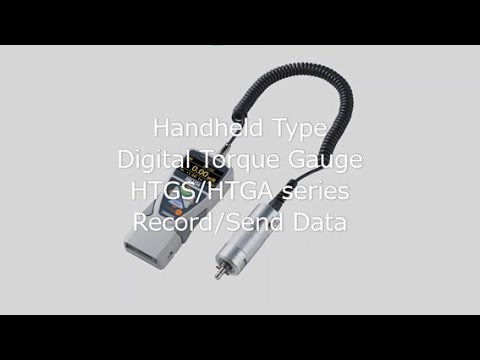

Record/Send Data

Data Record

Save Data To USB Memory Directly

Data Record

Save Data, Open the Saved File by Force Logger

Data Record

Export to CSV, Print Data, Copy and Paste Data by Force Logger

Data Record

Acquire/Delete Data by Force Logger

Maintenance

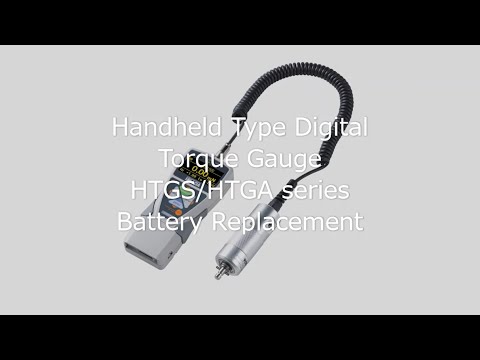

Battery Replacement
