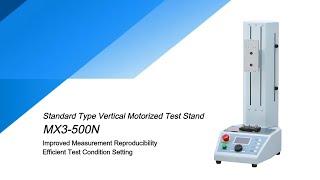

Standard Type Vertical Motorized Test Stand

MX3-500N

MX3-500N

Description Relevant Information and Materials Relevant Products
CONTACT
  1. Force Measurement IMADA
  2. PRODUCTS
  3. Motorized Test Stands
  4. MX3-500N

Description Add to favorites

MX3-500N MX3-500N

MX3-500N+ZTA-500N MX3-500N+ZTA-500N

MX3-500N

MX3-500N+ZTA-500N

Lo-Mid Force

Digital Speed Ctrl

Multi Function

Displacement OPT

Next Series

Desk-top size motorized test stand for use in combination with IMADA force gauge. Achieves a highly reproducible force measuring process with uniform test speed and force direction. In addition to digital speed setting and counter/timer functions, it is also possible to control operation control by force value. (Dedicated cable connections required with a compatible force gauge required). Downloadable software included for operation setting support efficiency.

Feature

  • Achieving test speed/force direction and stroke uniformity enables highly reproducible force measuring processes.
  • The interlinking function with a force gauge enables operation control (stop, reverse, keep load, etc.) by force value.
  • Variety of available options, including long stroke (-L/-2L), pre-installed Linear Scale (-FA), and external I/O connector (-CN).
  • The LCD panel supports Japanese and English displays, with the dial and buttons providing high operability.
  • User and product registration with IMADA Connected enables dedicated software downloads, for operation setting from PC. The software realizes efficient measurement settings.
