Force-displacement Measurement Unit
FSA series
Description Add to favorites
FSA-1KE-50N
FSA-0.5K2-50N
FSA-5K2-5000N
FSA-2.5HK2-2500N
FSA-MSL-50N
Bundles
Lo-Mid Force
Hi Force
Variety
Precise Analysis
Force DISP Graph
IMADA FSA series is force-displacement measurement unit. This unit allows accurate force-displacement measurement and analysis with force-displacement graphing software. It is ideal for force-displacement measurements such as material characteristic evaluation and tactile testing.
Feature
- Simple operation and easy setup for force-displacement measurements and analysis such as material characteristic evaluation and tactile testing
- High sampling rate (2000Hz) for accurate results, capturing small changes and accurate peak values by following rapid changes of force
- Allows complex measurement analysis using supplied force-displacement graphing software, capturing small changes with high sampling rate (2000Hz)
- Assists force-displacement measurements by zero reset of displacement values at chosen load values
- Handles a wide range of testing applications such as tension, compress and peeling testing with various model to meet your requirements and optional attachments
Relevant Information and Materials
Measurement Example Videos
Repulsion Force Test of Game Ball
Hardness Measurement of a shoe sole
Repulsion Force Test of Cushioning Material
.png)
Adhesive tape peel strength test (Force-Displacement)
Tension Strength Test of Polypropylene Strapping Band (Complies with the corresponding part of JIS Z1527)
Cosmetic Foundation Hardness Test
Tactile switch click sensation test
Tension strength and elongation test of thread
Elasticity test of face mask band
Pull off test of elastic band from face mask
Peel Test of Gable-Top Package Complies with the corresponding part of ISO 17480: 2015
Peel Strength Test of Heat-Sealed Packages (Complies with the corresponding part of ISO 17480: 2015)
Tactile Test of Mouse Button
Complete Peeling Test of Instant Cup Noodle Lid (Complies with the corresponding part of ISO17480: 2015)
Test Method for Seal Strength of Flexible Barrier Materials (Complied with the corresponding part of ASTM F88/F88M-15: 2015)
Operating force test of switch
.webp)
Penetration and Drag Force Measurement for Needles (Complies with the corresponding part of ISO 7864:2016)
500ml PET Bottle Top-Load Testing
User Guide Videos
Mounting

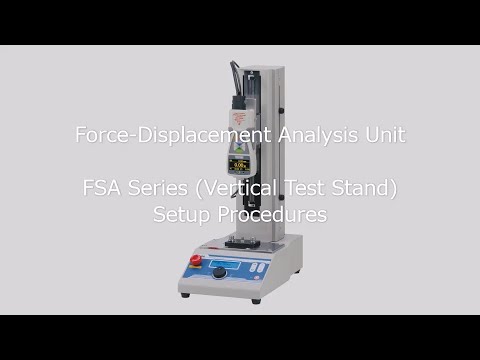

FSA Series Vertical Test Stand Setup Procedures
Mounting
FSA Series Horizontal Test Stand Setup Procedures
Mounting
FSA-MSL Series Setup Procedures
