Plug-in for Force Recorder Next Professional

Spring Rate Measurement Module

Spring Rate Measurement Module

Description Relevant Information and Materials Relevant Products User Guide Videos Optional Module Introduction
CONTACT
  1. Force Measurement IMADA
  2. PRODUCTS
  3. Additional Chargeable Function for Software
  4. Spring Rate Measurement Module

Description Add to favorites

Spring Rate Measurement Module Display Image Spring Rate Measurement Module Display Image

Plug-in software

Downloadable product

Spring rate

The Spring Rate Measurement Module is a dedicated plug-in for the Force Recorder Next Professional. The spring rate (N/mm), the force required to extend or compress a spring by 1 mm, is automatically calculated and displayed. The function supports spring rate measurements for three types of springs: compression springs, tension springs, and disc springs.

* To download this function, a redemption code provided on the Download Card Basic is required.
* This function cannot be added to the floating license versions of the Force Recorder Next series (Force Recorder Next Professional‑FLT).

Feature

  • Automatically calculates and displays the spring rate based on force values and displacement after graph creation. *Calculation and display of the spring rate are available only when force–displacement graphs are plotted using Force Recorder Next Professional.
  • Supports measurements for three types of springs: compression springs, tension springs, and disc springs. *When measuring disc springs, use in combination with the Deflection Correction Function is recommended.
  • Enables users to export calculated spring rates to reports and CSV files.

User Guide Videos

*When you play the video, YouTube (Google LLC) services will be loaded. As a result, YouTube may collect personal data such as cookies, IP addresses, and access-related information. Such data will be processed by YouTube in accordance with its Privacy Policy and Terms of Service.

Using

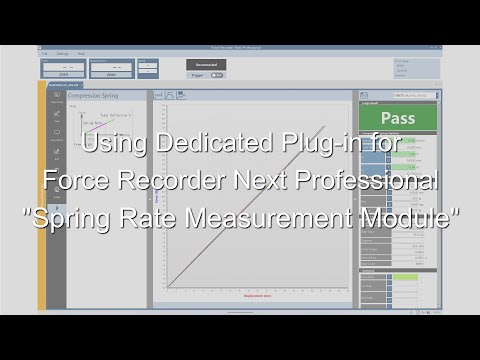

Using Dedicated Plug-in for Force Recorder Next Professional "Spring Rate Measurement Module"
