Downloadable Force-Displacement (Torque-Angle) Graphing Software

Force Recorder Next Professional

Force Recorder Next Professional

Description Relevant Information and Materials Relevant Products User Guide Videos
CONTACT
  1. Force Measurement IMADA
  2. PRODUCTS
  3. Software
  4. Force Recorder Next Professional

Description Add to favorites

Force Recorder Next Professional Graphing Image Force Recorder Next Professional Graphing Image

Force Recorder Professional Launcher Icon Force Recorder Professional Launcher Icon

Force Recorder Next Professional Graphing Image

Force Recorder Professional Launcher Icon

Hi Res Graph

Overlaying Graphs

Multi Function

Force-Disp Graph

Downloadable

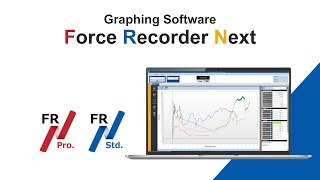

Force Recorder Next Professional is the graphing software that precisely records the force-time (displacement) and torque-time (angle) transitions in force measurement through high-speed communication at a maximum of 2000 Hz. The easy-to-use interface and various preset functions are useful to increase the efficiency of force measurement and the analysis of its results. Additional functions can be added from the user support site, allowing the software to be used according to individual needs. *To use the software, user & product registration on IMADA Connected is required. Only Next Series products can be registered.

Feature

  • Draws force-time (displacement) graphs for ZTA/eZT/FA Plus2, and torque-time (angle) graphs for HTGA/DTXA. *linear scales, angle meters or test stands equipped with these tools required
  • Enables accurate graphing and data analysis with high sampling rate of max. 2000Hz, which captures fine force transitions
  • Equips various editing functions such as trigger function for automatic recording and graphing, up to 10-graph overlaying, guide lines, comments and Image insertions and selection data
  • Its user-friendly UI, test condition preset, and user management functions increases usability of the software
  • Additional/customized functions are downloadable through the user support site, IMADA Connected

User Guide Videos

Data Record

Open File / Add or Delite Graphs in the File

Setting

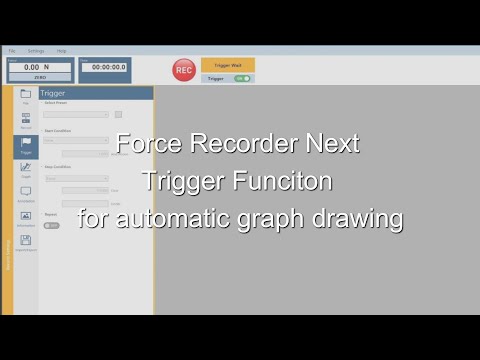

Trigger Function for automatic graph drawing

Setting

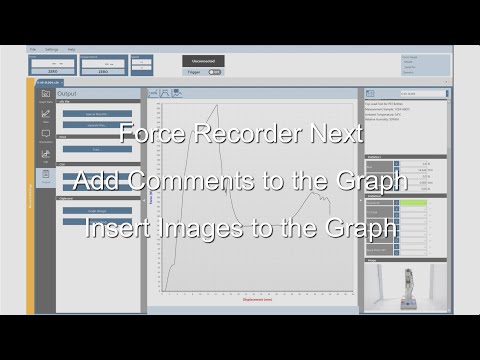

Add Comments to the Graph / Insert Images to the Graph

Setting

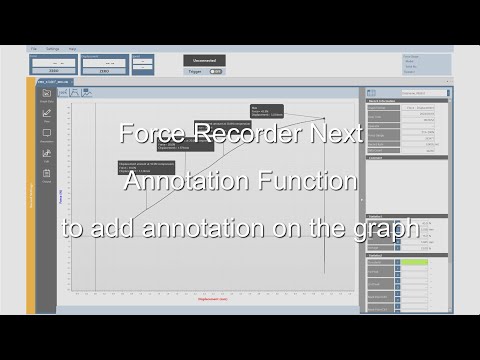

Annotation Function to add annotation on the graph

Setting

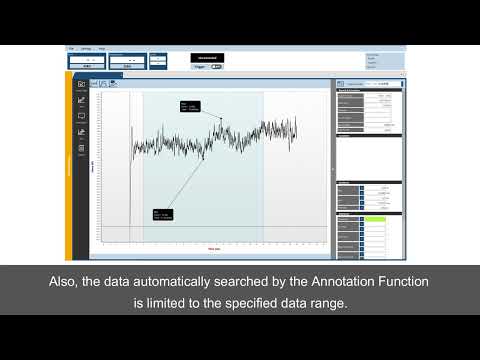

Selection Data Function to display statistics within the selection data range
