Plug-in for Force Recorder Next Series (For Bending Stress Measurement)

Bending Stress Measurement Module

Bending Stress Measurement Module

Description Relevant Information and Materials Relevant Products
CONTACT
  1. Force Measurement IMADA
  2. PRODUCTS
  3. Additional Chargeable Function for Software
  4. Bending Stress Measurement Module

Description Add to favorites

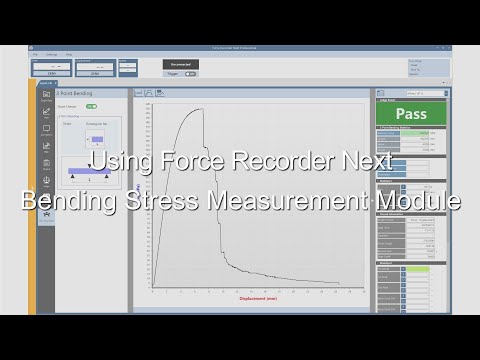

Bending Stress Measurement Module Display Image Bending Stress Measurement Module Display Image

Four-Point Bending Test Result Display Image Four-Point Bending Test Result Display Image

Cantilever Beam Test Result Display Image Cantilever Beam Test Result Display Image

Bending Stress Measurement Module Display Image

Four-Point Bending Test Result Display Image

Cantilever Beam Test Result Display Image

Plug-in software

Downloadable Product

Bending stress

The Bending Stress Measurement Module is a plug-in for the Force Recorder Next Series. This function automatically calculates and displays ”Bending Stress" during bending tests for material strength design, performance evaluation, durability verification etc. Measurement data including bending stress can be output in report format and CSV format. Supported sample shapes are rectangular/square bars and round bars. Supported test methods are Three-point bending, Four-point bending, and Cantilever beam. *Download Card Basic is required.

Feature

  • Automatically calculates and displays bending stress from measured values.
  • Supports three types of test methods: three-point bending, four-point bending, and cantilever beam.
  • Users with administrator privileges can register multiple measurement conditions using the preset registration function, helping improve measurement efficiency and prevent unintended changes to test settings.
  • Bending stress and related parameters can be easily exported using dedicated report templates or in CSV format.
