Standard Type Horizontal Motorized Test Stand

MH2 series

  1. Force Measurement IMADA
  2. PRODUCTS
  3. Motorized Test Stands
  4. MH2 series

Description Add to favorites

MH2-500N MH2-500N

MH2-2500N MH2-2500N

MH2-500N + ZTA MH2-500N + ZTA

MH2-500N

MH2-2500N

MH2-500N + ZTA

Horizontal

Lo-Mid Force

Hi Force

Digital Speed Ctrl

Multi Function

Displacement OPT

Horizontal Motorized Test Stand MH2 series is standard type with 500N to 2500N capacity. It is functional yet user-friendly model with easy operation. The horizontal design allows applying force horizontally. Its rugged design provides solutions for complex testing.

Feature

  • Achieves high repeatability with constant testing speed and position, high rigidity, and allows applying force horizontally due to horizontal design
  • Handles various testing such as durability or compression testing with digital setting of speed, counter function (number of tests to repeat), and timer function (pausing time)
  • Handles a wide range of testing applications to meet your testing requirements with options such as -FA (inner linear scale)
  • Enhances testing efficiency and safety with option -CN (I/O for external signals), allowing for communication for interlock and starting operation, etc.

User Guide Videos

Mounting

Mount Various Products

Mounting

Mounting Linear Scale Unit (MH2-2500N)

Measurement

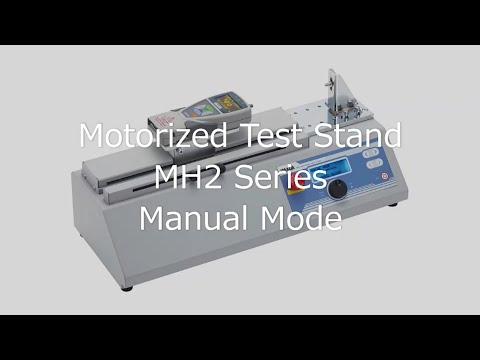

Manual Mode

Measurement

Apply Set Load Value Then Return/Repeat

Measurement

Hold the Specified Load Value Range for Certain Period Time

Measurement

Force-Displacement Measurement (*Requires an optional cable)

Troubleshooting

Handling Methods for Problems of Power On / Display Light On

Troubleshooting

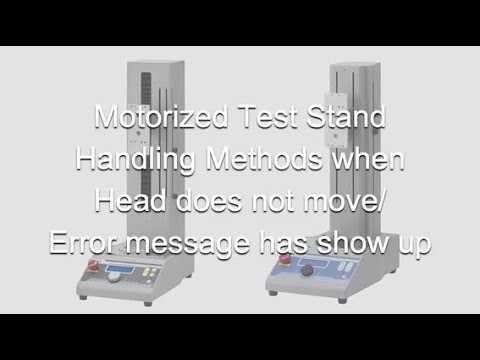

Handling Methods for Head Movement /Error Message
