Motorized Torque Stand
MTS series
Description Add to favorites
MTS-10N
MTS-10N-L
For DTXS/A
Motorized
Digital Speed Ctrl
Multi Function
Angle Option
Height Option
MTS series is the dedicated motorized torque stand for the screw cap tester with 10N-m(1000N-cm) capacity. It enables torque measurement with higher reproductivity thanks to its constanct rotation speed. The operation can be controlled by torque values and rotation periods. It also enables durability tests using repetition function.
Feature
- Realizes highly repeatable measurements with constant test speed by simple operation
- Possible to control the operation by torque values and rotation periods by connecting to DTXS/DTXA with a dedicated cable
- Suitable for durability tests of bottle caps and circuit boards using repetition function by setting the required conditions
- Optional software Force Recorder Light/Standard available for real-time graphing of torque vs. time to enhance measurement efficiency
- Performs torque-angle measurement when using option -RA model (equips a rotary encoder), combined with DTXA series
Relevant Information and Materials
Example of Product Configuration
MTS-10N
Features
It provides constant rotation speed, producing greater precision.
We offer wide range of clamps / sample holding attachments to fit your sample’s sizes, shapes and materials.
inquiry number
1M4001A
Present the “inquiry number” below when you contact us, for prompt assistance.
Product used
Screw cap torque tester
DTXS-2N-Z
1
Motorized torque stand
MTS-10N
1
Optional attachment
MT-ST
1
Optional attachment
DT-STL
1
Cautions
Refer to specifications of each product for details.
Product configuration varies depending on the shape and characteristic of the sample, and measurement conditions.
The recommended capacity of measurement instruments varies depending on the expected force to be loaded.
MTS-10N-2L
Features
It provides constant rotation speed, producing greater precision.
We offer wide range of clamps / sample holding attachments to fit your sample’s sizes, shapes and materials.
inquiry number
1M4001B
Present the “inquiry number” below when you contact us, for prompt assistance.
Product used
Screw cap torque tester
DTXS-10N-TB-02
1
Motorized torque stand
MTS-10N-2L
1
Optional attachment
MT-TB
1
Cautions
Refer to specifications of each product for details.
Product configuration varies depending on the shape and characteristic of the sample, and measurement conditions.
The recommended capacity of measurement instruments varies depending on the expected force to be loaded.
User Guide Videos
Setting

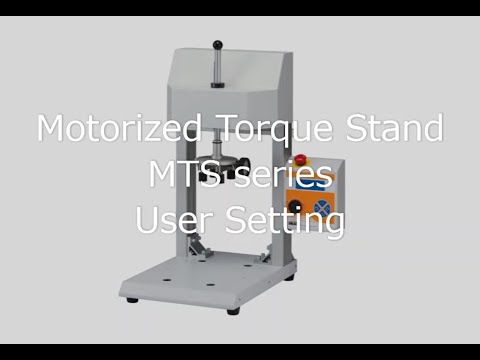

User Setting
Mounting
Mount Torque Gauge/Attachments/Adjust the Height of Attachment
Measurement
Manual Operation Mode/Fine adjustment in JOG Mode
Setting
ONE WAY mode (Operation Control with Torque Value and Continuous Rotation Period)
Setting

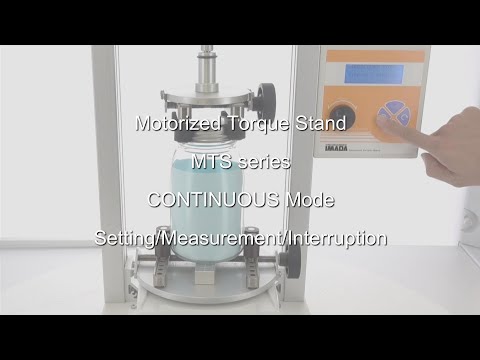

CONTINUOUS Mode (Setting / Measurement / Interruption)
Setting
Zero Reset of Peak Values/Automatic Memory and Output of Measured Values (Automatic mode)
UnitConverter
Unit ConverterConvenient Unit/Torque/
Tension conversion
6 Significant Digits (*Significant digits are meaningful digits that do not include zeros, which are used to indicate the scale.)
