Simple Type Horizontal Motorized Test Stand

MH-1000N

MH-1000N

Description Relevant Information and Materials Relevant Products User Guide Videos
CONTACT
  1. Force Measurement IMADA
  2. PRODUCTS
  3. Motorized Test Stands
  4. MH-1000N

Description Add to favorites

MH-1000N MH-1000N

Horizontal

Lo-Mid Force

Reasonable

Basic

Horizontal Motorized Test Stand MH-1000N is simple type with 1000N capacity. It achieves high repeatability with constant testing speed and position. The horizontal design allows applying force horizontally and makes sample setups easy.

Feature

  • Achieves high repeatability with constant testing speed and position, and allows applying force horizontally due to horizontal design
  • Performs in 3 modes, including continuous cycle mode for repetitive testing
  • Handles a wide range of testing applications to meet your testing requirements with options such as -S (length scale) and -E (speed/length meter)
  • Offers overload prevention and force control function when connected with force gauge *Activated when ZTS/ZTA series force gauge and CB-508 cable are used together

User Guide Videos

Setting

Select Manual/Single Cycle/Continuous Cycle Mode

Setting

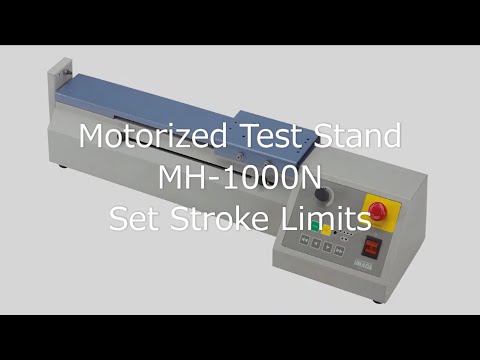

Set Stroke Limits

Setting

Set Fixed Speed

Setting

Overload Stop Function

Setting

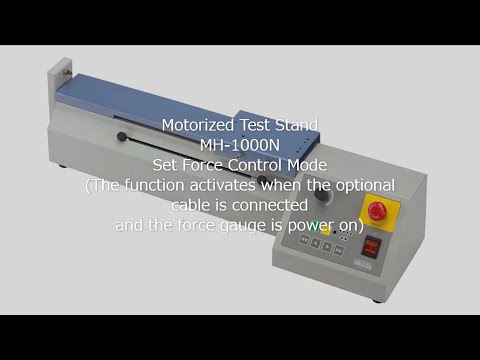

Set Force Control Mode

Mounting

Mount Force Gauges and Connect by Cable
