Simple Type Vertical Motorized Test Stand

MX series

MX series

Description Relevant Information and Materials Relevant Products User Guide Videos
CONTACT
  1. Force Measurement IMADA
  2. PRODUCTS
  3. Motorized Test Stands
  4. MX series

Description Add to favorites

MX-500N MX-500N

Lo-Mid Force

Reasonable

Basic

Simple type motorized test stand has capacity of 1000N and is cost-effective with the limited functions, enabling constant speed and direction, and high repeatability of measurement. It can be used for various measurements such as tension and compression.

Feature

  • Achieves high repeatability with constant testing speed and position
  • Performs in 3 modes, including continuous cycle mode for repetitive testing
  • Handles a wide range of testing applications to meet your testing requirements with options such as -S (length scale) and -L (long stroke) *-L option only available for MX-500N and MX-1000N
  • Offers overload prevention and force control function when connected with force gauge*Activated when ZTS/ZTA series force gauge and CB-508 cable are used together

User Guide Videos

Setting

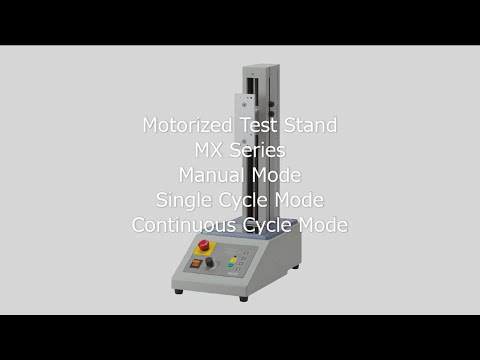

Select Manual/Single Cycle/Continuous Cycle Mode

Setting

Set Stroke Limits

Setting

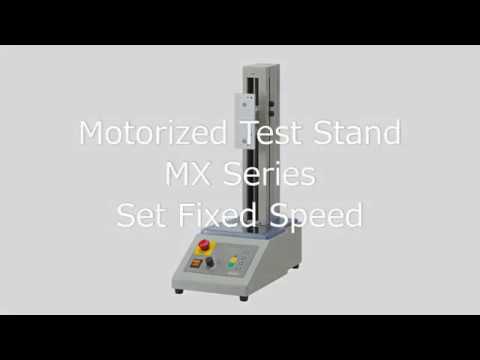

Set Fixed Speed

Setting

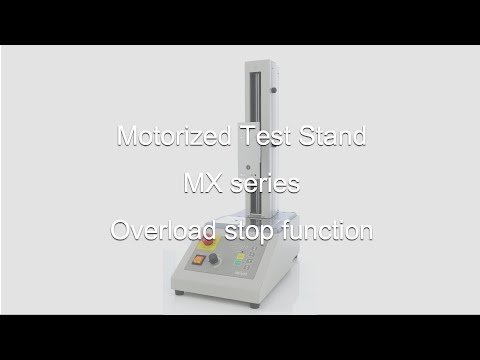

Overload Stop Function

Setting

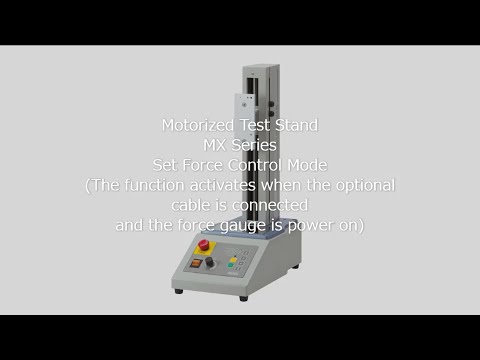

Set Force Control Mode

Mounting

Mount Force Gauges and Connect by Cable

Maintenance

Maintenance Method (Grease Up)
