Measurement Efficiency and Productivity Improvement
Measurement Efficiency and Productivity Improvement
- Force Measurement IMADA
- PRODUCTS
- Measurement Efficiency and Productivity Improvement
Measurement Efficiency and Productivity Improvement
We propose shortening measurement takt time, visualization of measurement line operation status, and so on.
Measurement Efficiency and Productivity Improvement
Inquiry No.1T043

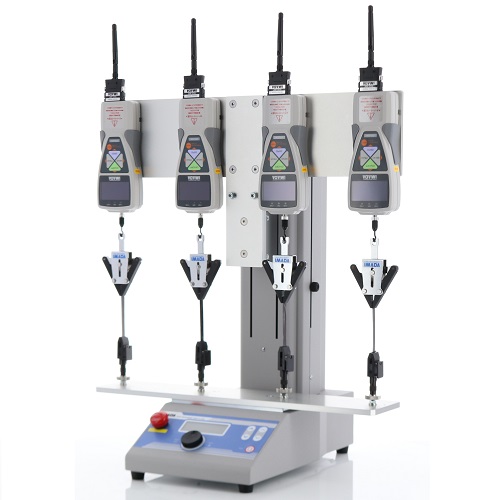

Peel Tester with Multiple Force Gauges
This peel tester enables 4 pcs of force gauges to perform peel testing simultaneously. By connecting the custom-made software, the test result of each force gauge can be output and graphed at the same time. These functions enhance testing efficiency greatly.
For more info
Inquiry No.1T063
Air Control Grip
This air control grip is ideal for gripping thin and wide-size sample, enabling you to efficiently open/close and adjust the gripping force of the grip by air.
For more info
Inquiry No.1T074
Buffer Spring Unit
This customized buffer spring unit helps stop the movement of force gauge at desired force precisely. Its spring mechanism decelerates the force climbing speed, which enhances testing precision.
For more info
Inquiry No.1T084
Screw Cap Torque Test Stand with Automatic Opening and Closing Function
This custom-made torque test stand automatically measures the opening torque of screw caps and closes them at the single touch of a button. It improves the inspection efficiency in the production line as the manual cap closing becomes unnecessary. Moreover, the weight mechanism on the top of the stand allows easy adjustment of the cap chuck position, which helps quick sample setting and replacement.
For more info
Inquiry No.1T094
Motorized Torque Test Stand with Counterweight
This is a customized mechanism for Motorized Torque Test Stand MTS series allows easy adjustment of the shaft height. Easy to keep the shaft position without tools thanks to the counterweight. It improves efficiency of testing.
For more info
