Additional Chargeable Function for Software
Multi-Level Evaluation Function

Description Add to favorites

Multi-Level Evaluation Function Display Image

Plug-in software

Downloadable Product

Multi-Level Evaluation

Multi‑Level Evaluation Function is a plug‑in for the Force Recorder Next series. Measurement results are evaluated based on five predefined evaluation levels, and the evaluation results are displayed on the software screen. Evaluation items and criteria can be freely configured (evaluation items are selected from options such as maximum value and minimum value).

* To download this function, a redemption code provided on the Download Card Basic is required.
* This function cannot be added to the floating license versions of the Force Recorder Next series (Force Recorder Next Standard‑FLT and Force Recorder Next Professional‑FLT).

Feature

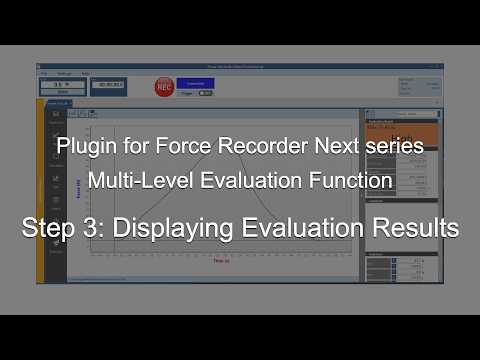

Classifies measurement results into up to five levels based on user-defined evaluation criteria and displays the evaluation results on the screen.

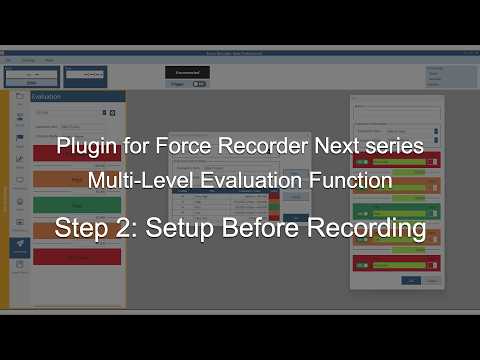

Allows users to freely configure evaluation items and criteria, and customize the labels and background colors used for evaluation results.
Enables users to export evaluation results to reports and CSV files.
Supports use in combination with other plug-ins. For details, refer to the specifications.
