Rotation Support Jig for DTXS/A

SDT series

SDT series

Description Relevant Information and Materials Example of Product Configuration Relevant Products User Guide Videos
CONTACT
  1. Force Measurement IMADA
  2. PRODUCTS
  3. Manual Torque Test Stands
  4. SDT series

Description Add to favorites

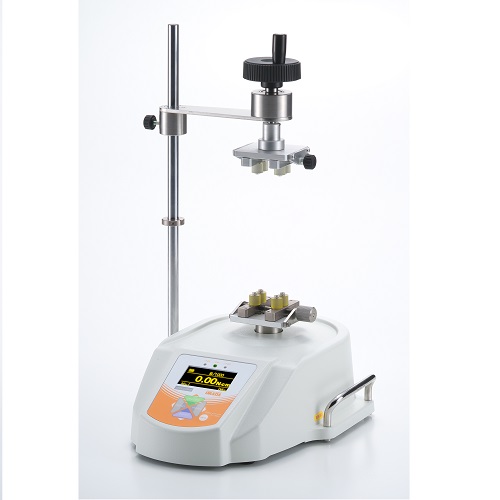

SDT-5N-L SDT-5N-L

SDT-5N-L Setting Image SDT-5N-L Setting Image

SDT-5N-L

SDT-5N-L Setting Image

For DTXS/A

Knob

Angle Option

Height Option

This is a manual rotation assistive jig exclusively for the DTXS/DTXA torque gauges. The jig makes it easy to rotate or continue to rotate more than 360 degrees by turning the knob.

Feature

  • Designed for DTXS/DTXA series
  • Enables you to rotate samples continuously by keeping turning the knob
  • Combines with attachment to use as a tester for various torque measurement
  • Ideal for analyzing torque-angle relationships by using an angle-meter

Relevant Information and Materials

SDT series Specifications

Example of Product Configuration

SDT-5N（2）

SDT-5N

1S4002A
1S4003A
Configuration 1 for SDT-5N1S4002A

Features

Used as a tester for various torque measurement

Enables to rotate samples continuously by keeping turning the knob

Enables to measure samples such as cylindrical shape sample and small motor

Used as a tester for screen protective film

inquiry number

1S4002A

Present the “inquiry number” below when you contact us, for prompt assistance.


Add to favorites
CONTACT
Product used

Screw cap torque tester

DTXS-5N

1

Rotating supporting stand jig

SDT-5N

1

Optional attachment

HT-ST

1

Cautions

Refer to specifications of each product for details.
Product configuration varies depending on the shape and characteristic of the sample, and measurement conditions.
The recommended capacity of measurement instruments varies depending on the expected force to be loaded.

Add to favorites
CONTACT
Configuration 1 for SDT-5N-RA1S4003A

Features

Used as a tester for various torque measurement

Enables to rotate samples continuously by keeping turning the knob

Ideal for analyzing torque-angle relationships by using an angle-meter

Enables to measure samples such as cylindrical shape sample and small motor

Used as a tester for screen protective film

inquiry number

1S4003A

Present the “inquiry number” below when you contact us, for prompt assistance.


Add to favorites
CONTACT
Product used

Screw cap torque tester

DTXA-5N

1

Rotating supporting stand jig

SDT-5N-RA

1

Optional attachment

HT-ST

1

Optional software

Force Recorder Professional

1

Cautions

Refer to specifications of each product for details.
Product configuration varies depending on the shape and characteristic of the sample, and measurement conditions.
The recommended capacity of measurement instruments varies depending on the expected force to be loaded.

Add to favorites
CONTACT

User Guide Videos

Setting

Set Samples

Setting

Set Angle-Meter (*Requires SDT series with angle-meter and DTXA Series )

Mounting

Mount DTX Series/Attachments
