High Functionality Type Screw Cap Torque Testers

DTXA series

DTXA series

Description Relevant Information and Materials Relevant Products User Guide Videos
CONTACT
  1. Force Measurement IMADA
  2. PRODUCTS
  3. Screw Cap Torque Testers
  4. DTXA series

Description Add to favorites

DTXS/A-10N DTXS/A-10N

DTXS/A-10N-ST DTXS/A-10N-ST

DTXS/A-10N

DTXS/A-10N-ST

Desktop

Next Series

Angle Input/Output

Multi Function

High-function screw cap torque tester has capacity of 50N-cm to 1000N-cm (10N-m). Capable of measuring opening and closing torque of container lids such as PET bottles and jars. In addition to the high measurement repeatability by high-speed sampling and various data output methods of the standard type (DTXS series), it features angle input/output and USB memory connection. Next Series with firmware Ver. 5 or later offers improved measurement stability due to low noise, and expandability and convenience through additional functions (firmware download) and various software and instruction manual from the dedicated website (IMADA Connected).

Feature

  • High sampling rate (2000Hz) for accurate results, capturing small changes and accurate peak values by following rapid changes of torque
  • Ideal for measuring opening/closing torque of various samples such as bottles and bins
  • Reduces risk of misreading values with easy-to-read high luminance organic EL display. Allows customers to customize the contents for the three sections of the display screen
  • Handles a wide range of samples with various optional tables and attachments
  • Equips additional functions such as angle I/O (angle meter required), direct connection to USB flash drive, and 1st and 2nd peak value detection

Relevant Industrial Standards

ISO 17480 [ 2015 ] [Packaging - Accessible design - Ease of opening] (corresponding part only)

JIS S0021-2 [ 2018 ] [Packaging - Accessible design - Ease of opening] (corresponding part only)

User Guide Videos

Setting

Set Multi Display/Force Bar Graph

Setting

Invert The +/- Signs

Setting

Set Modes

Setting

Set High Low Setpoints

Setting

Auto Shut Off Screen Saver

Setting

Install Software Force Logger

Setting

Install Force Logger Driver (ZT Series)

Setting

Use Force Logger in Wired/Wireless Mode

Setting

Select Items to Show and Save, Change and Save the Settings of Force Gauge in Force Logger

Mounting

Fix Attachments

Measurement

Torque Tests

Measurement

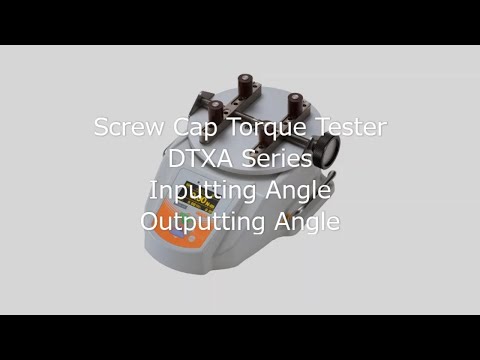

Test/Output Angle

Data record

Record/Send Data

Data record

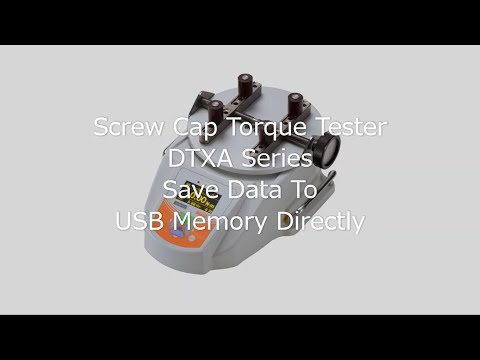

Save Data To USB Memory Directly (DTXA series)

Maintenance

Battery Replacement
